UHV Sputtering System (AJA Int.)

UHV Sputtering System (AJA Int.)
Offered as External Service

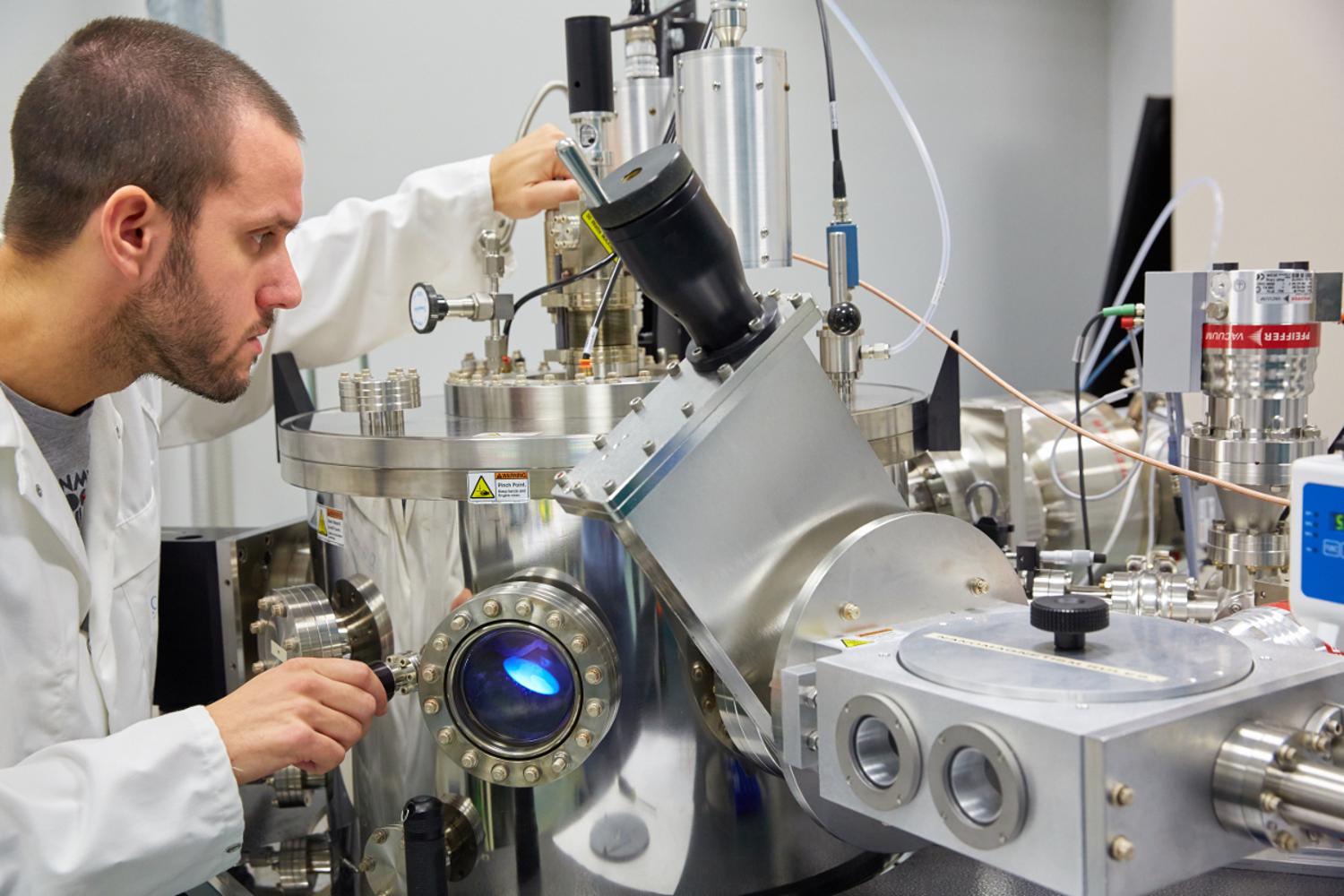

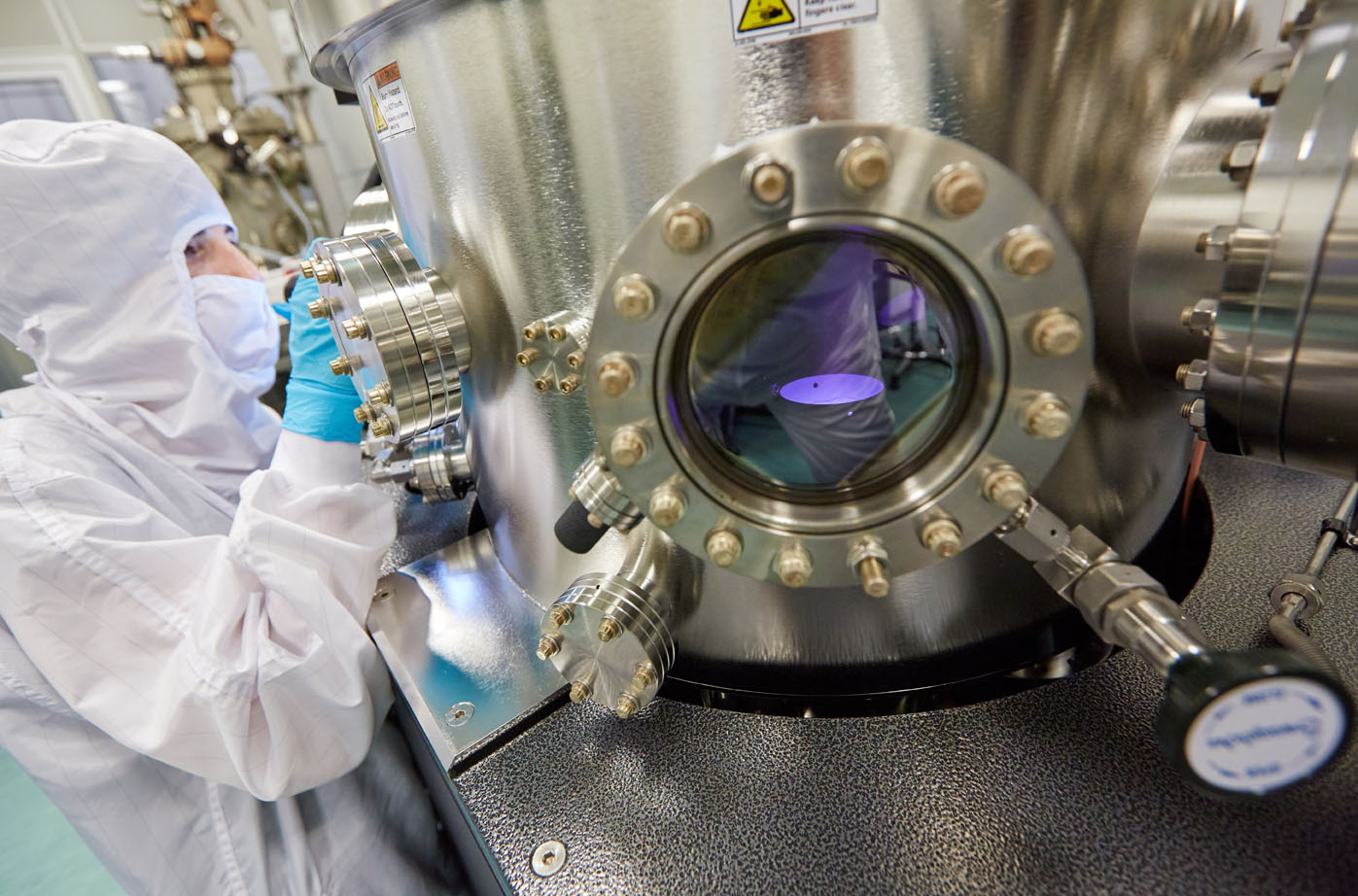

We have two UHV Magnetron Sputtering system for high quality single or multiple layer thin film growth, one in the cleanroom and another one in the Deposition Laboratory.



Research group
Technical characteristics
  • Confocal 7 magnetron sputtering guns (DC / RF)
  • RF bias available
  • Base pressure 10-8 Torr
  • Sample holder: 4” compatible and possibility to heat (up to 850 °C) or cool the sample (liquid nitrogen cooler)
  • Reactive gasses: nitrogen and oxygen



Cleanroom
CR4 - Deposition Bay
