ALD Beneq TFS 200

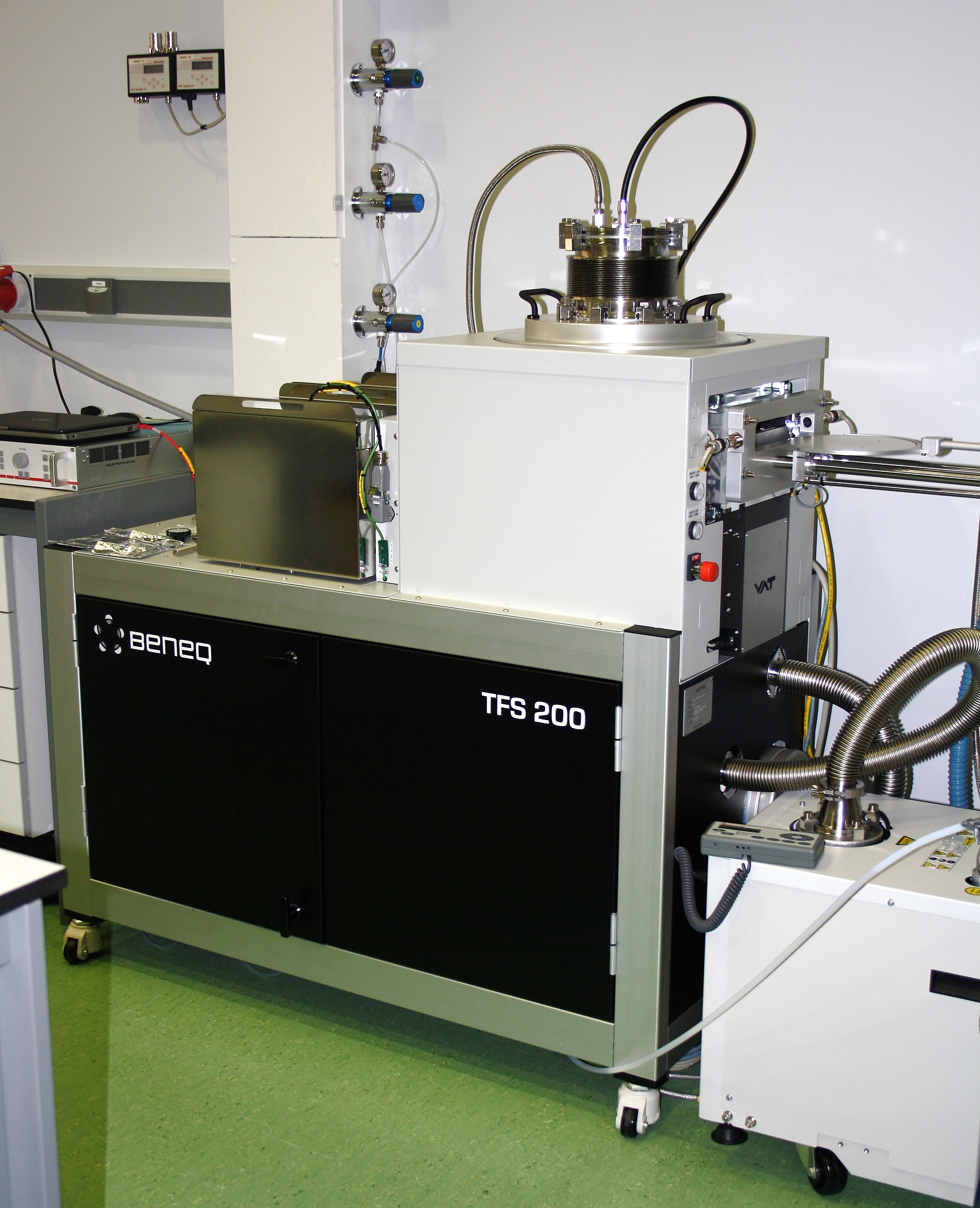

BENEQ TFS-200

The Beneq TFS 200 Atomic Layer Deposition (ALD) system is designed for advanced thin film research purposes, with both thermal ALD capability, and plasma option for Plasma-Enhanced ALD (PEALD), in-situ etching, substrate pre-treatment and substrate post-treatment. Substrate alternatives include wafers and other planar substrates, complex 3D substrates as well as powders and other porous substrates.

Research group
Technical characteristics
  • Water cooled cold-wall vacuum chamber
  • Hot-wall reaction chamber inside the vacuum chamber
  • Process temperature up to 500ºC
  • Top or side substrate loading
  • Up to 200 mm wafers
  • Two liquid precursor lines
  • Two hot precursor sources (up to 300ºC) for precursors with low vapor pressure or solid precursors
